PCB
Capability
Technical
- Board Type : Build-up, BVH, Rigid-Flex, Metal PCB, BIB , Probe Card, Road Board
- Hole Capability : Back –Drill , Flip Drill , Depth Drill , Via on Pad
- Material : Arlon, Panasonic , Isola , Nelco , Rogers
| Max Panel Size | 660mm x 780mm |
|---|---|
| Minimum Inner Line Width | 2mil |
| Minimum Outer Line Width | 3mil |
| Impedance control Tolerance | 5% |
| Maximum Number of Layers | 72 |
| Maximum Board thickness | 7.2T |
| Minimum Dielectric Thickness | 0.05T |
| Board Thickness Tolerance | Min 0.1T ~ 0.2T |
| Minimum BGA Pitch | 0.35 picth - Advanced 0.3 pitch |
| Minimum Hole Size | 0.11mm - Advanced 0.075mm |
| Aspect Ratio | 32 : 1 - Advanced 40 : 1 |

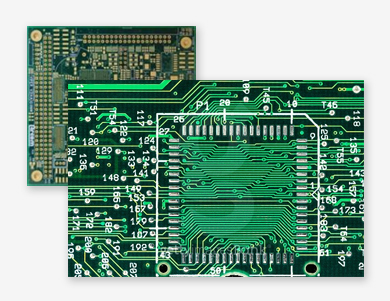

Normal Board
- Materials : FR-4 , FR-4 High Tg
- Thickness : 1.6T
- Layer : 1 ~ 14 Layer
- Minimum Drill Size : 5 mil
- Out Layer Minimum Trace Width : 4 mil
- Inner Layer Minimum Trace Width : 4 mil
- Impedacne : 50 ohms or more

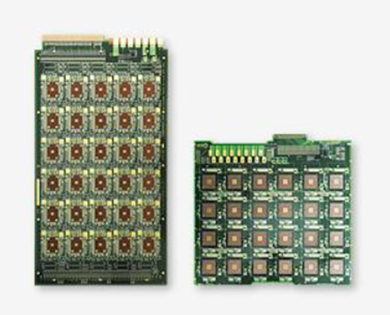

BIB
- Material : Arlon , FR-4 Tg 180 , Panasonic
- layer : 2 ~ 28 BIB
- Size : 312 x 610 , 440 x 570 , 570 x 610 .. etc
- Pitch : 0.35 ~ 2.54
- Thickness : 1.6T ~ 4.8T
- Minimum Drill Size : Min 5 mil
- Out Layer Minimum Trace Width : 4 mil
- Inner Layer Minimum Trace Width : 4 mil
- Impedance : 50ohms or more

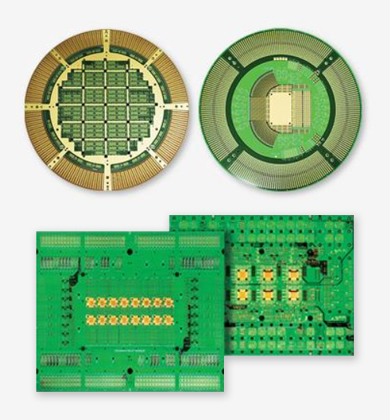

Probe Card & Road Board
- Material : Panosonic ( M4 & M6 ) , Nelco , Arlon , Rogers
- layer : 12 ~ 72
- Size : 520mm
- Pitch : 0.35 ~ 1.0
- Thickness : 4.8 ~ 7.2T
- Minimum Drill Size : 6 mil
- Out Layer Minimum Trace Width : 4 mil
- Inner Layer Minimum Trace Width : 3 mil
- Impedance : 50ohms or more
